Vortex, hydroelectric power turbine

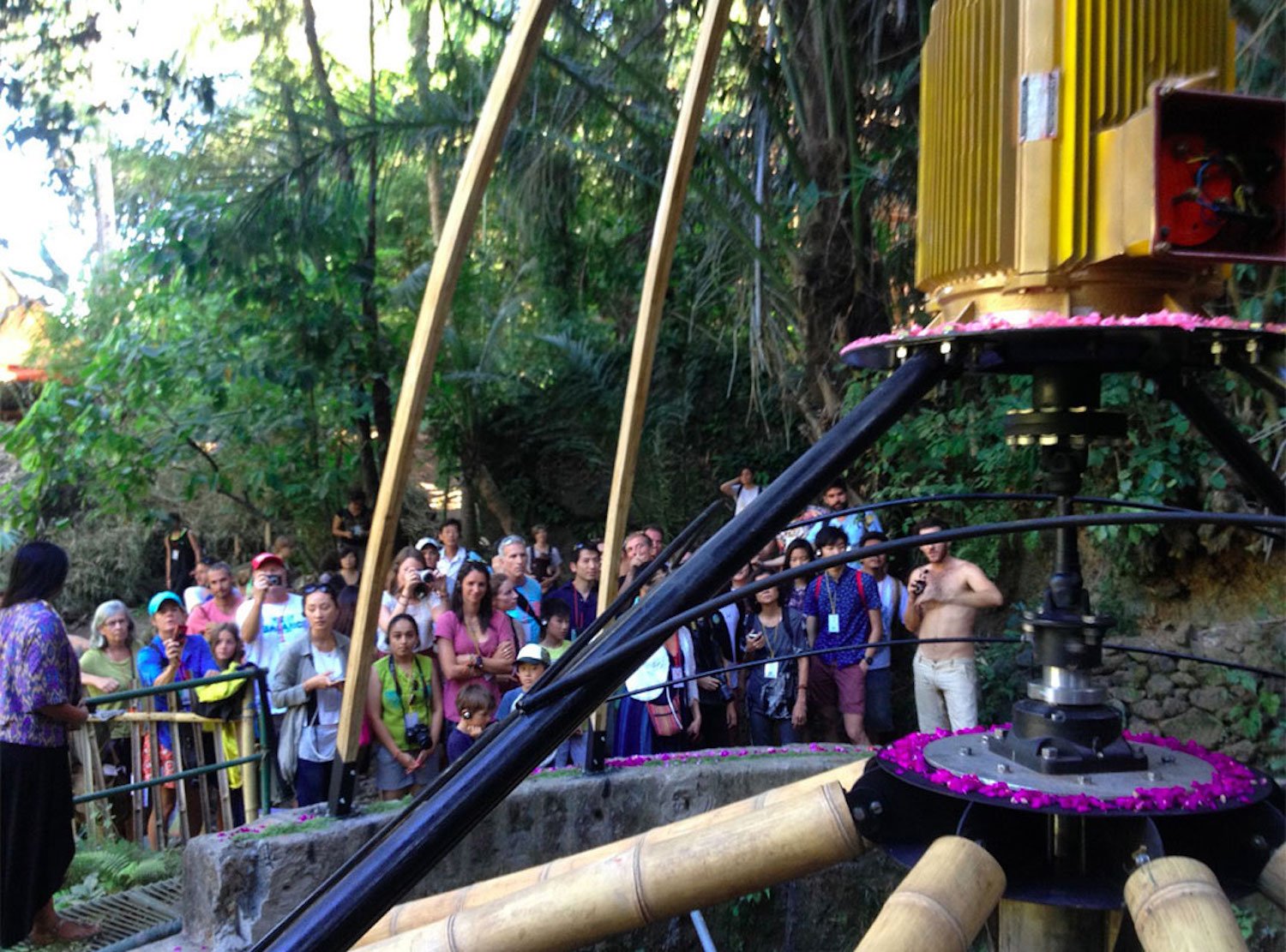

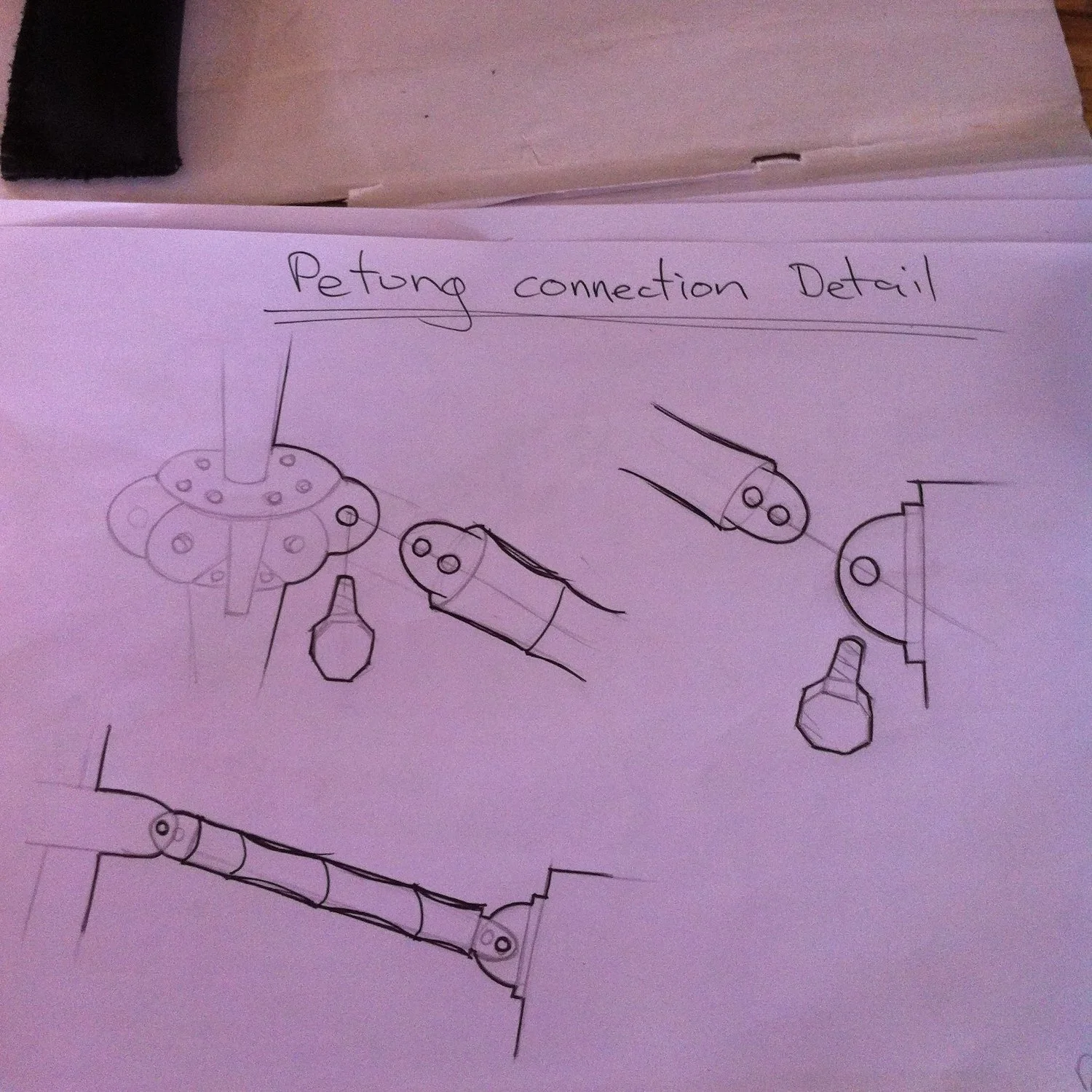

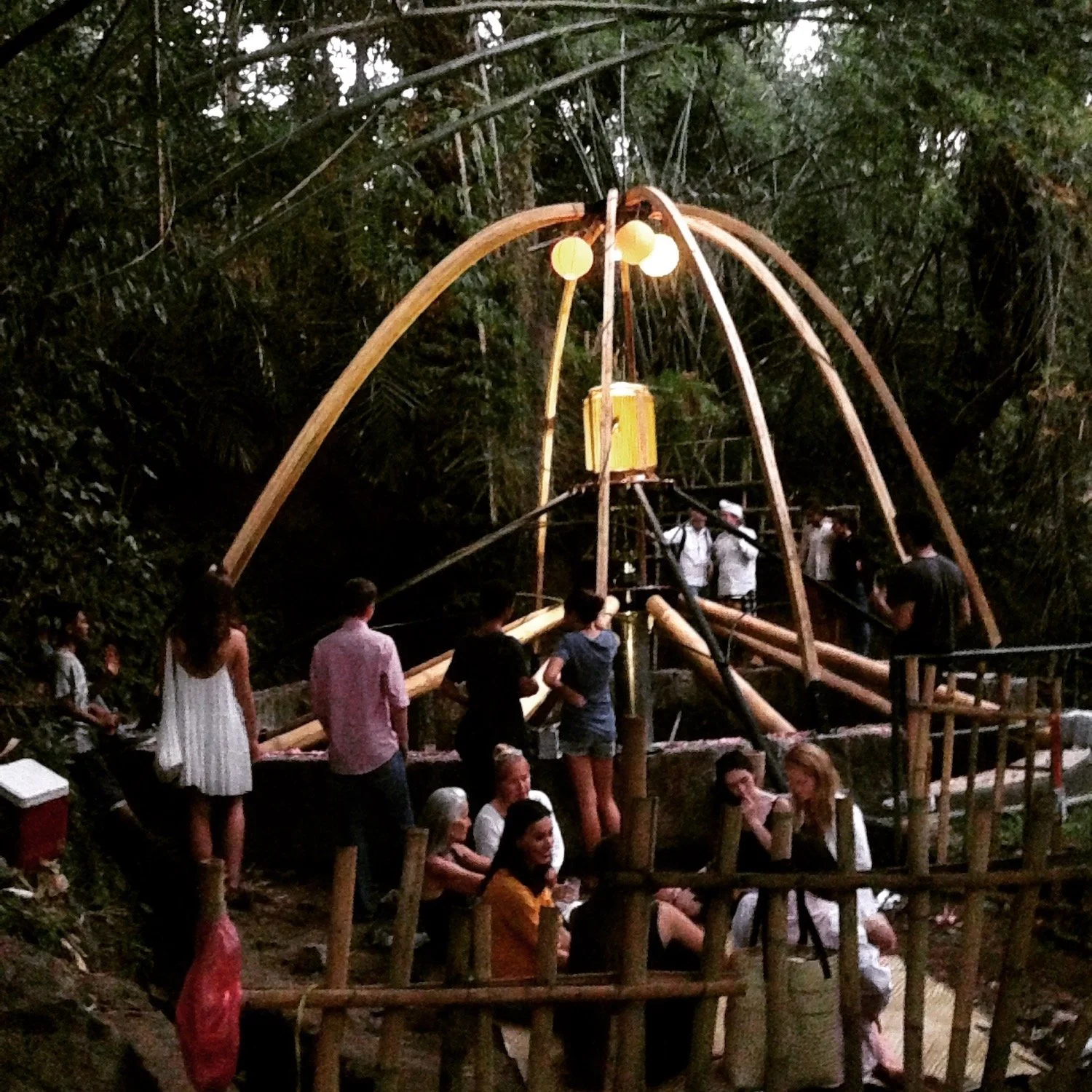

I designed, engineered and fabricated the Vortex power generator for the Green School, Bali. This is a non invasive micro hydro plant and is coupled with a solar array to power the Green School Bali, taking it off grid dependancy.

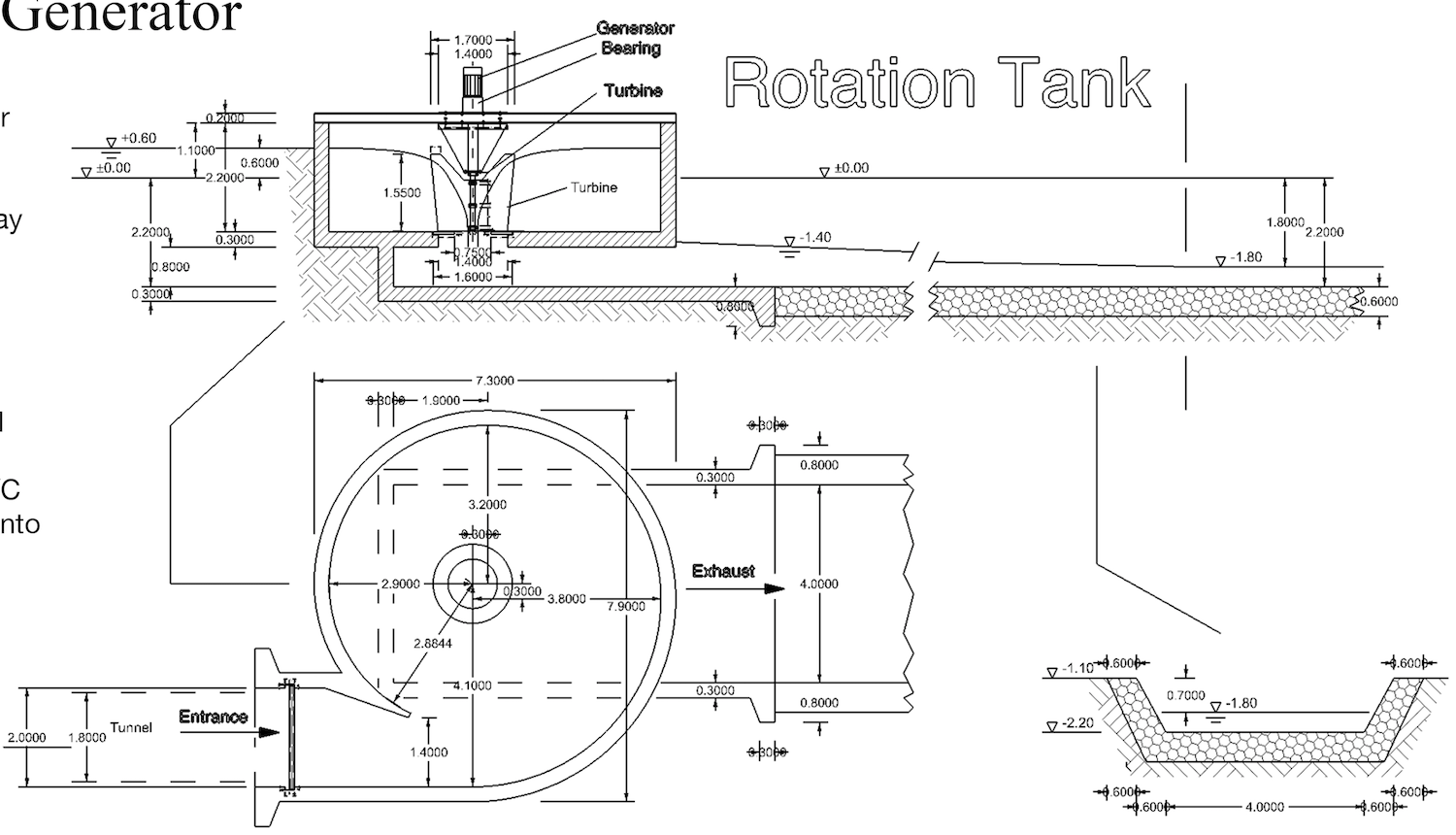

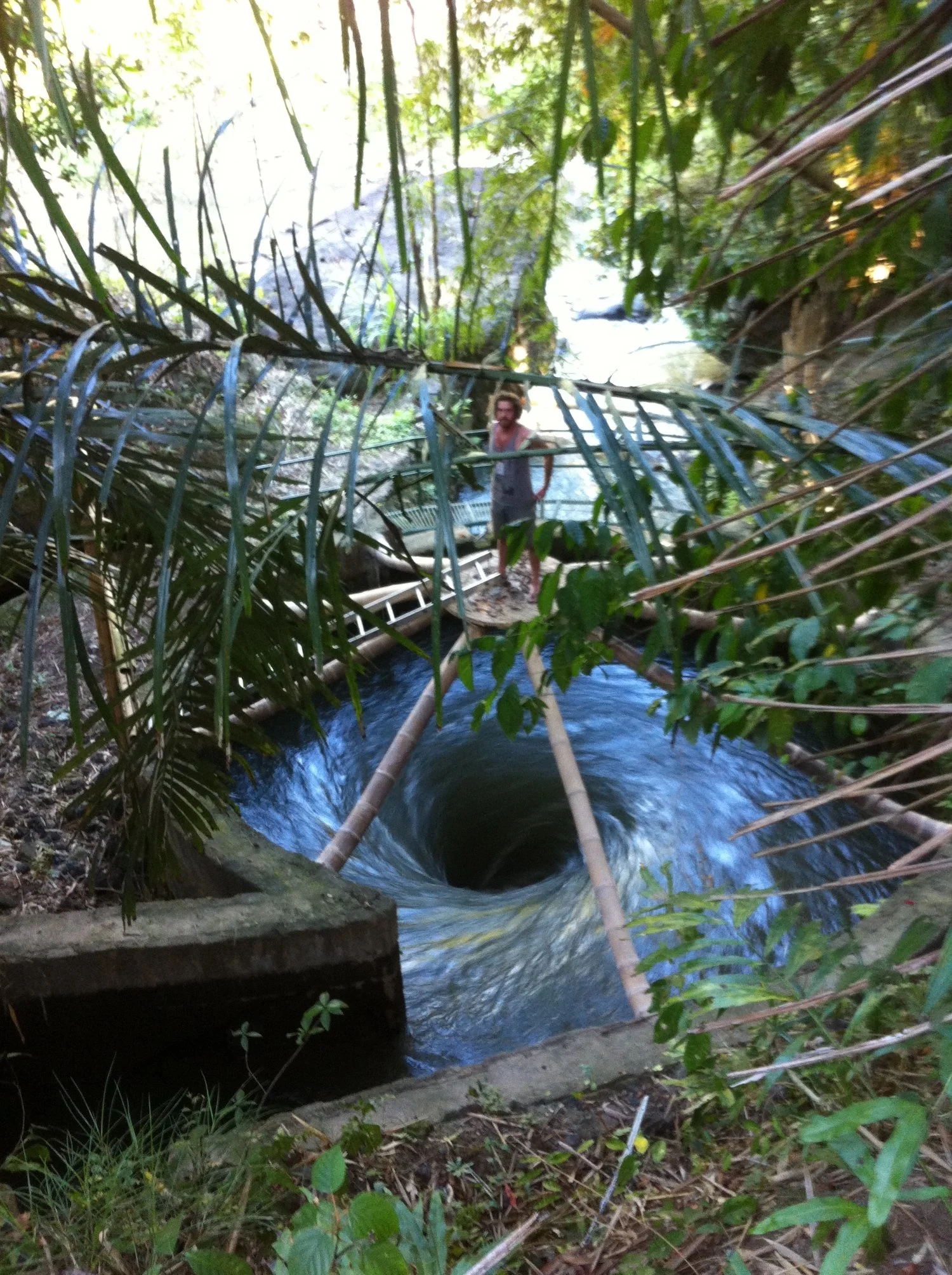

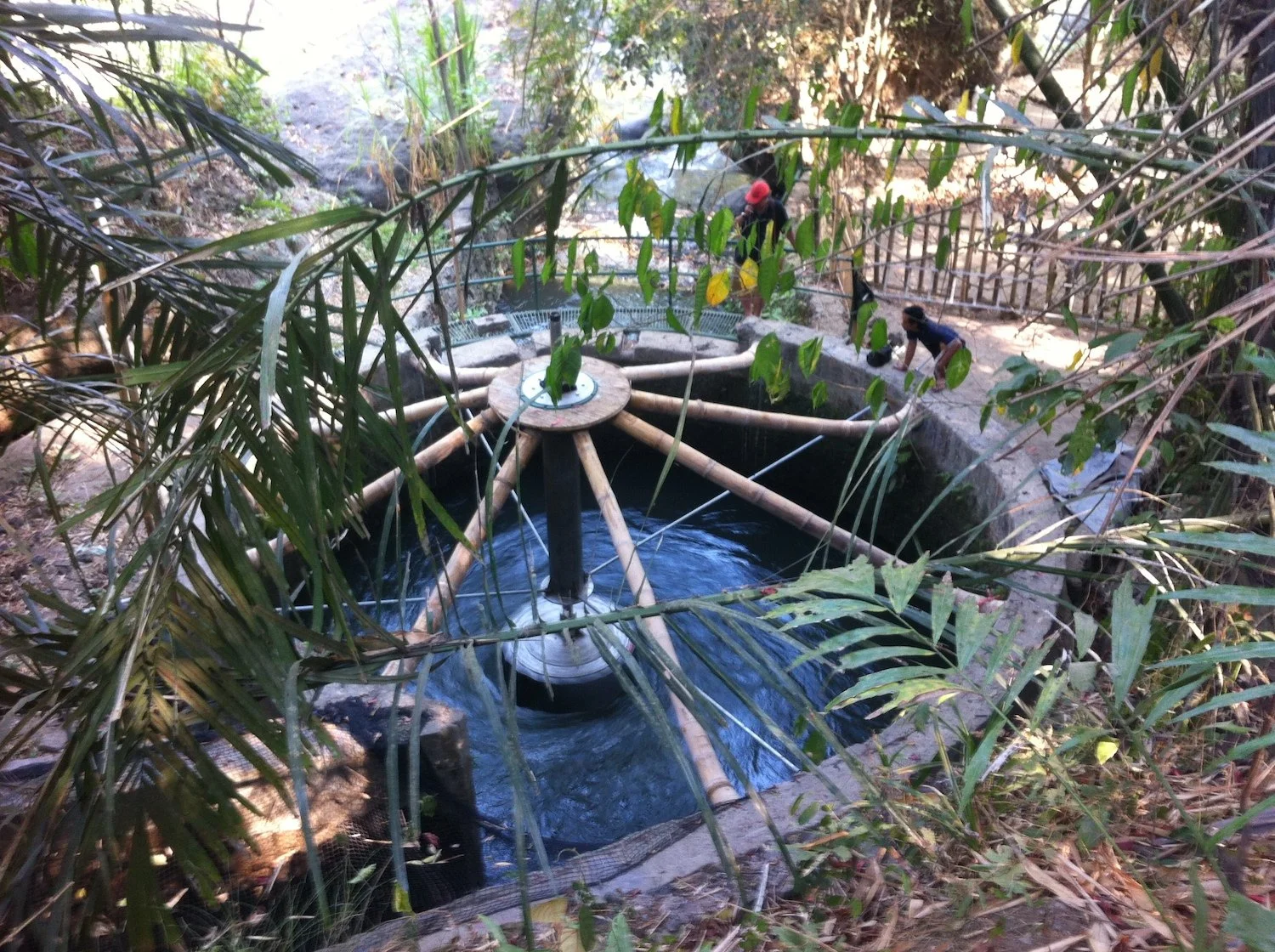

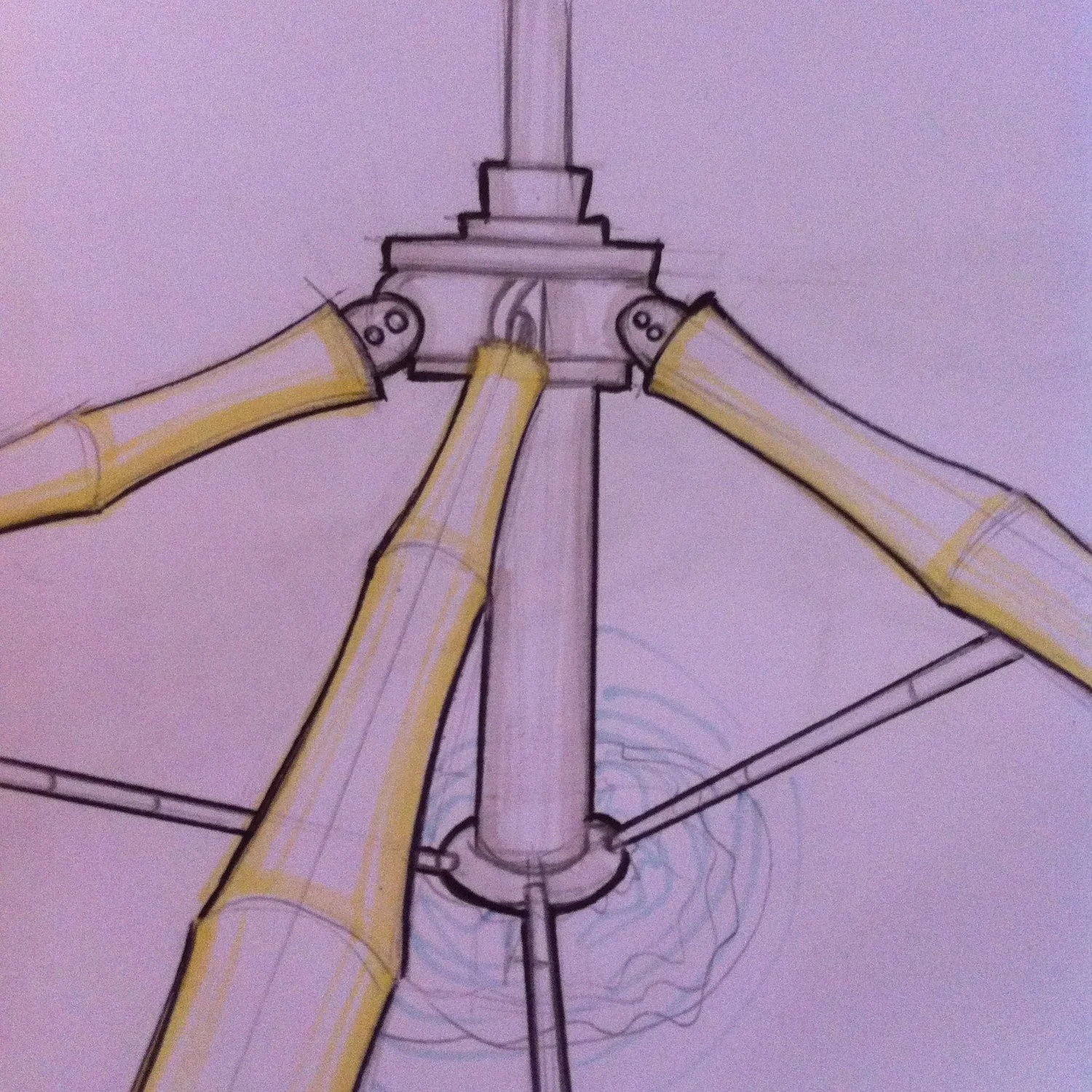

Water is diverted into the rotation tank via a wear and two gates. (one into the rotation tank, the other back into the river ). The water enters the rotation tank and a vortex is formed .

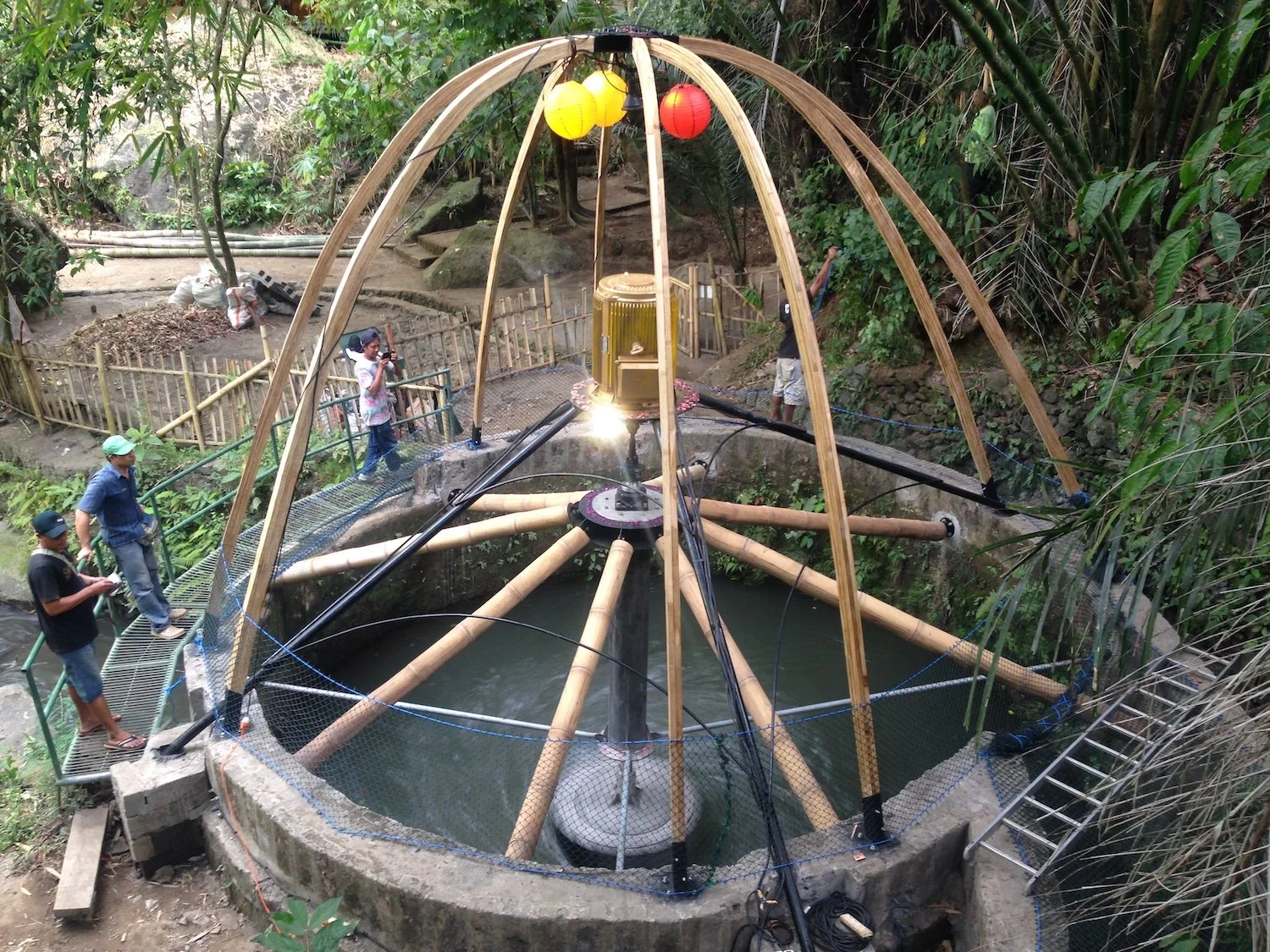

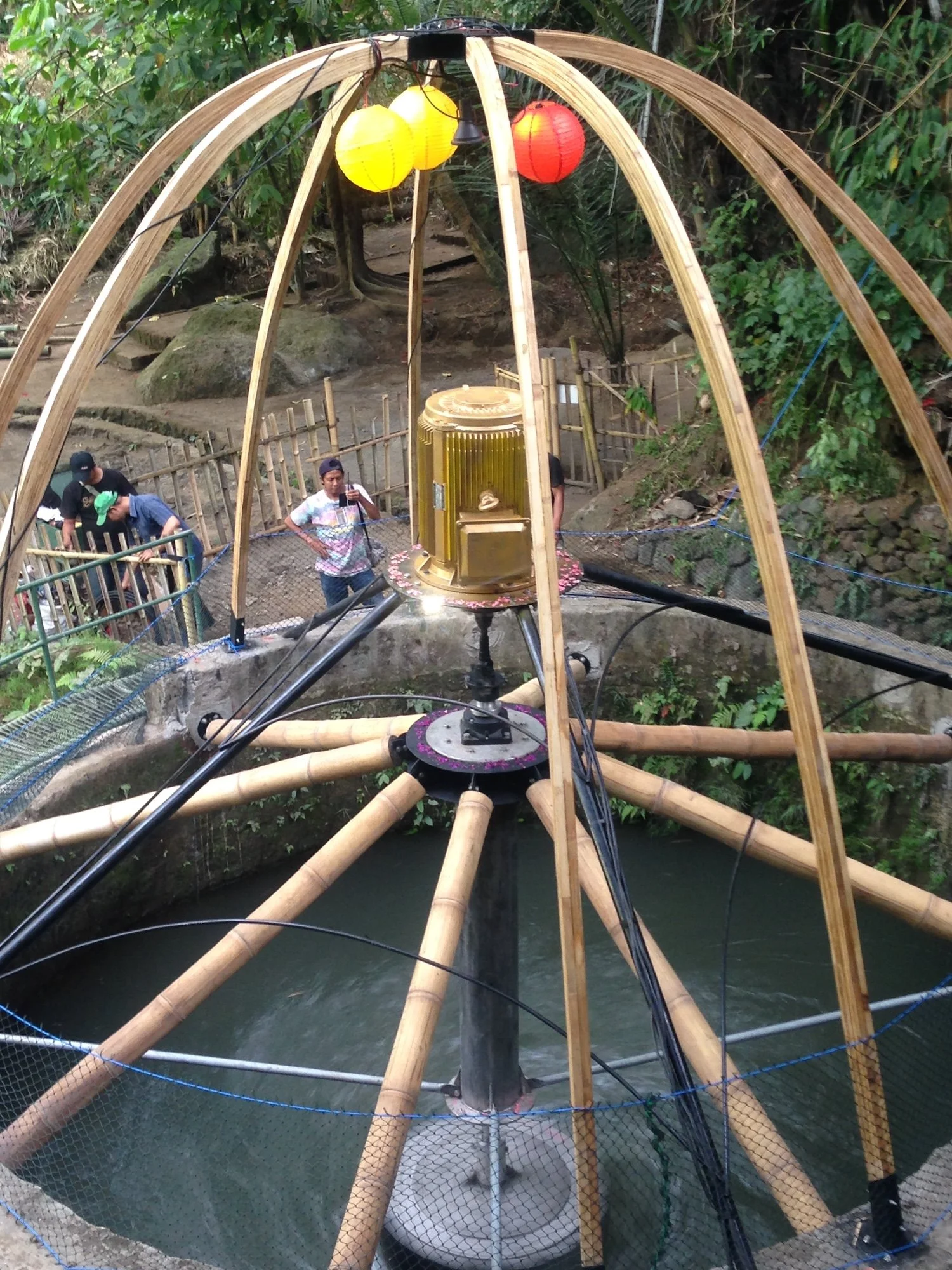

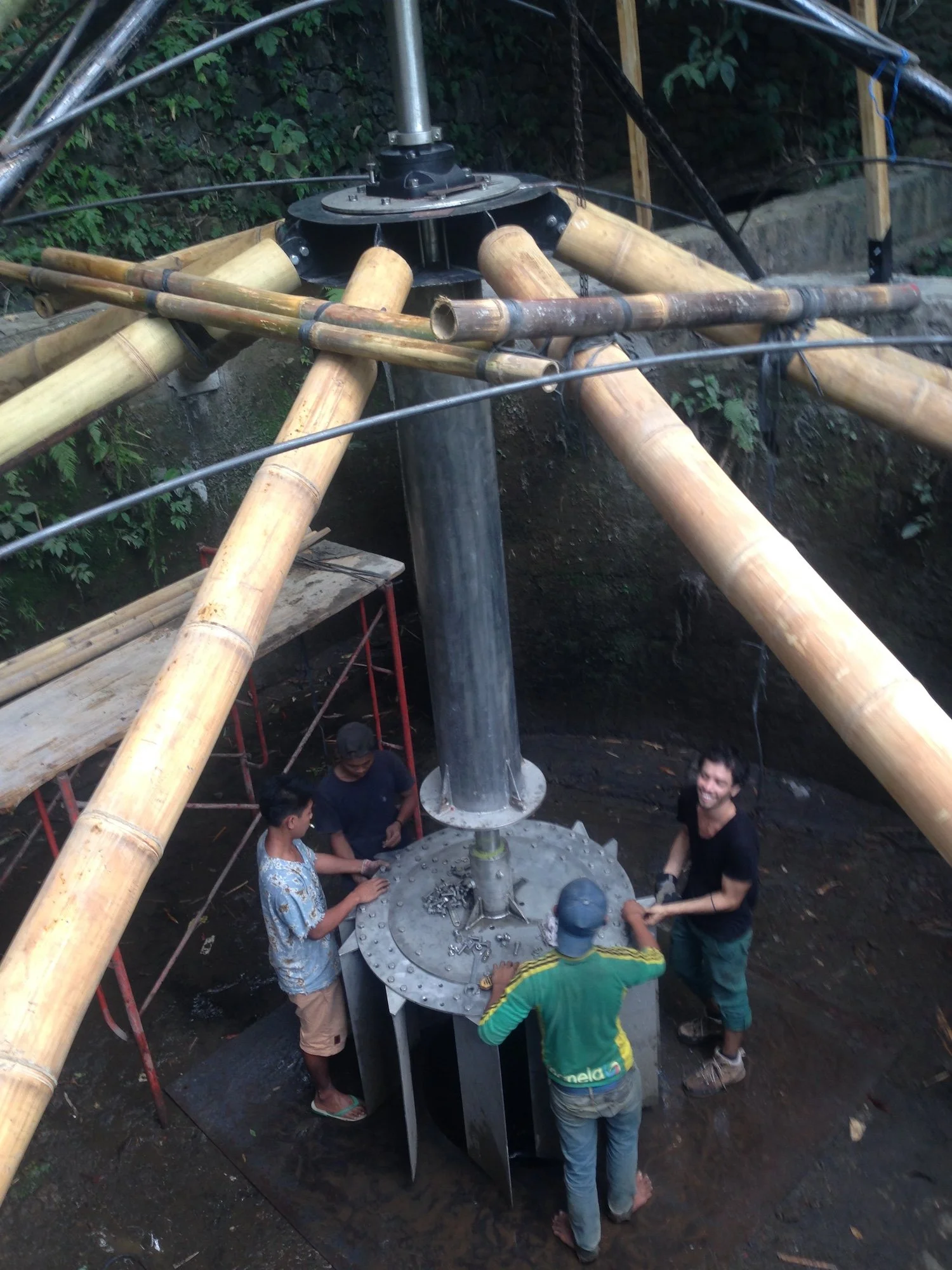

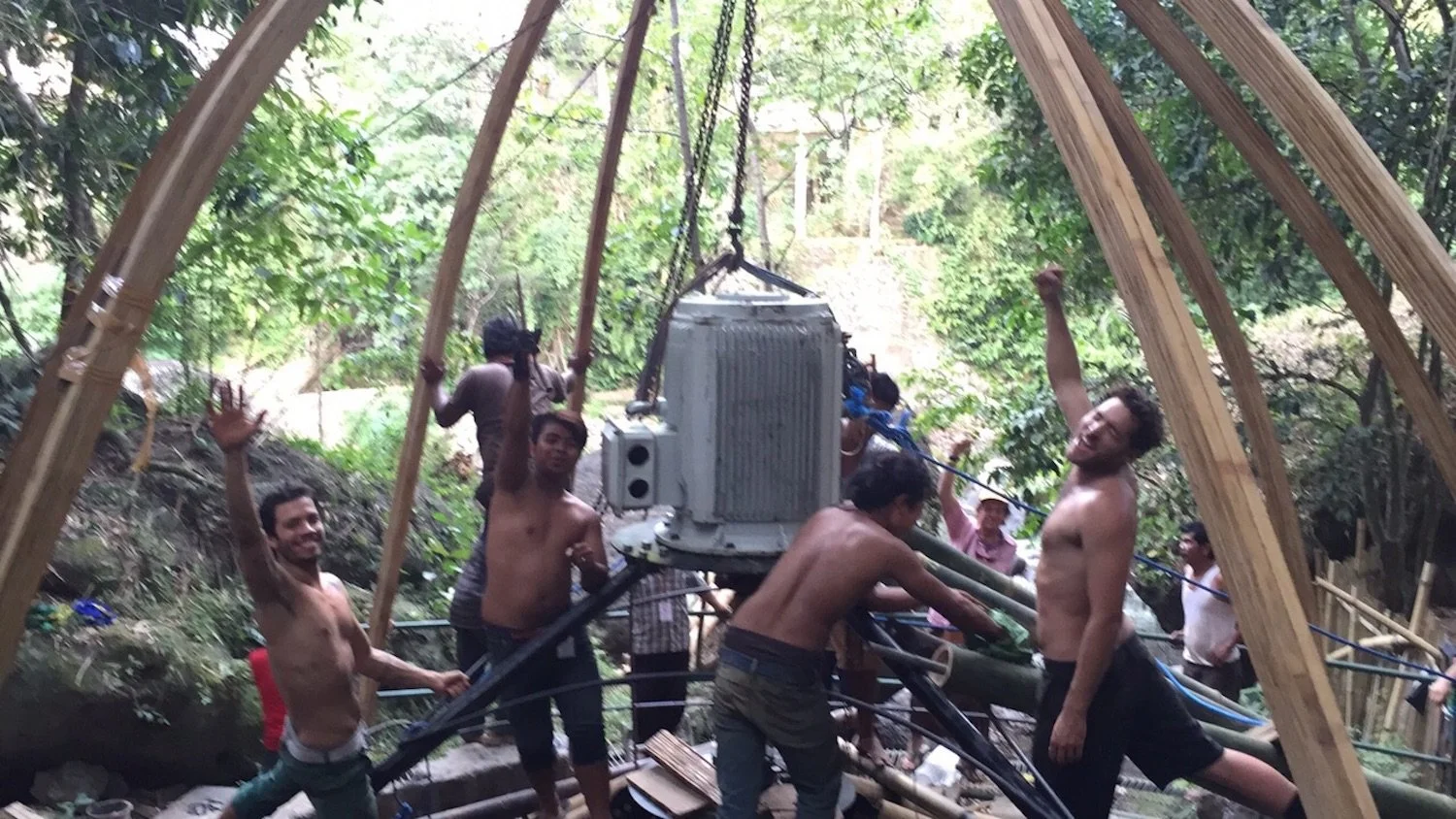

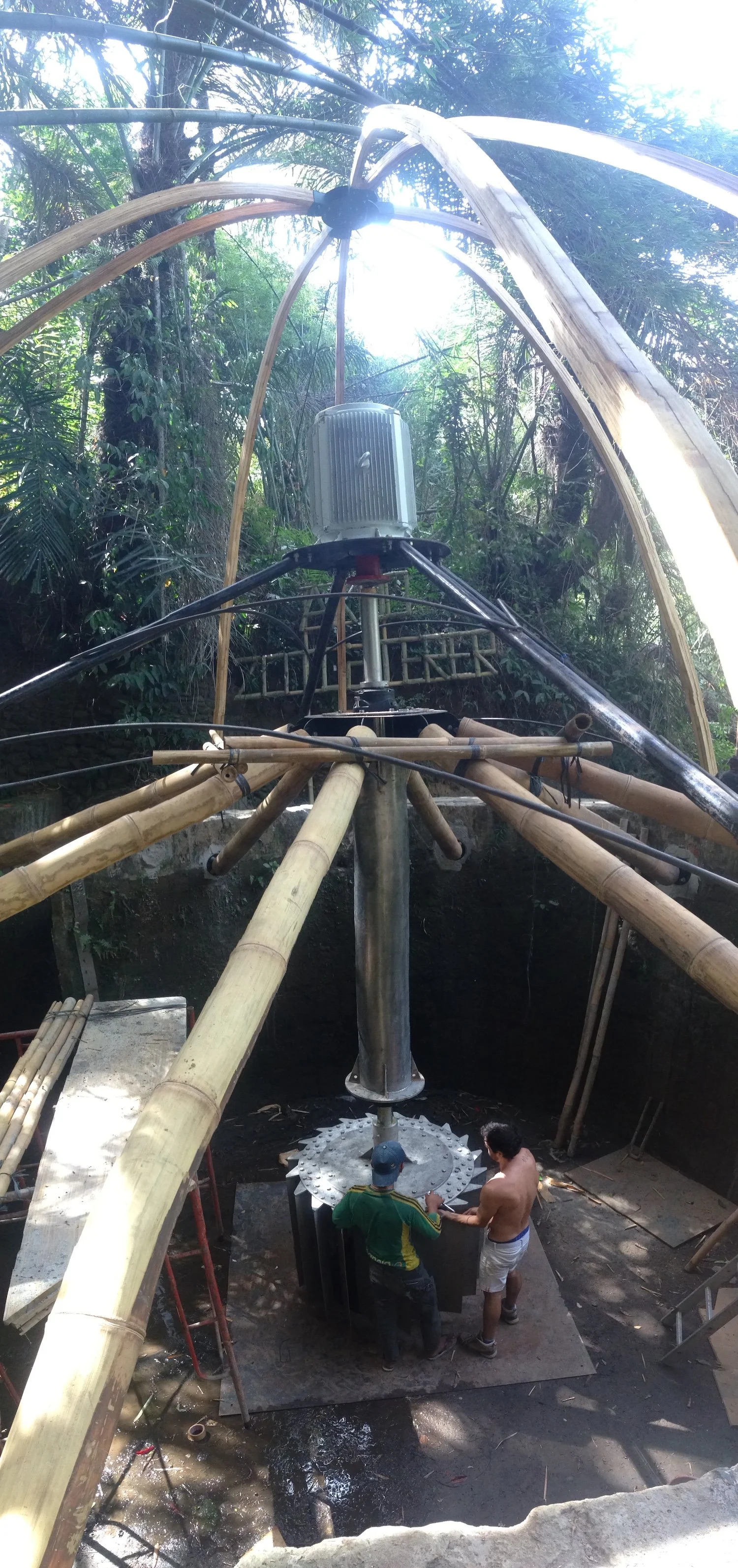

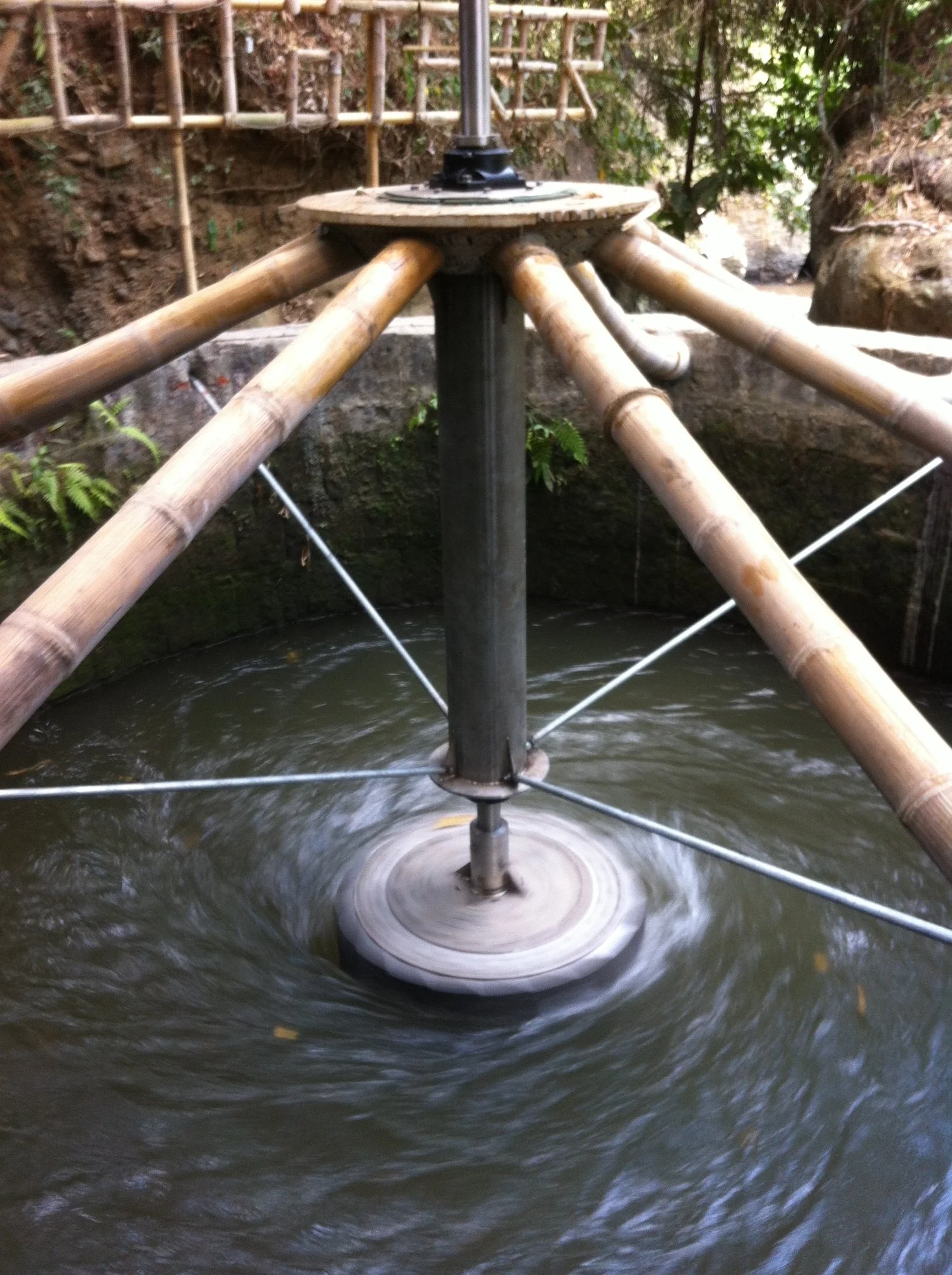

This Vortex drives a turbine which is coupled via 100mm diameter stainless steel shaft to a 15 Kw permanent magnet generator. This generator produces AC electricity which is then inverted into a DC power signal in order to provide power to the battery banks and then onto the school.
